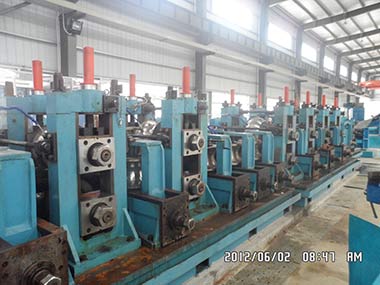

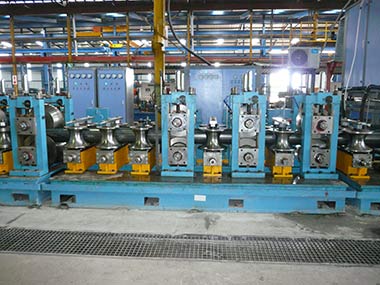

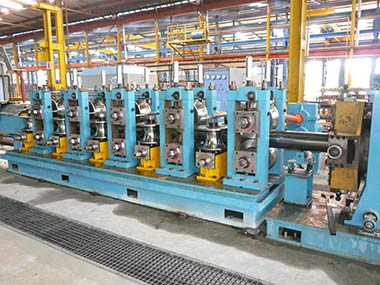

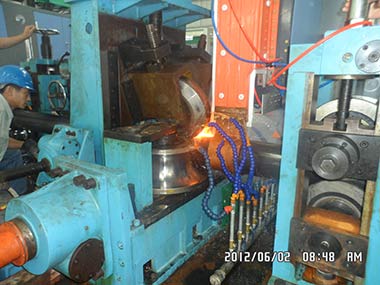

219 TUBE MILL LINE
The Tube Mill is a combination of equipment installed in a line for the production of High Frequency Induction Welded (HFIW) carbon steel tubes. The process involved is cold forming of carbon steel strip in circular shape, longitudinal welding, sizing, converting into specified shape and cutting to pre determined length.
Technological Flow：
Steel strip → Coil car → Uncoiling →Coil peeler → Pinch & Leveling →Shearing and butt welding → Accumulator → Forming → Welding → Bead remover →Water cooling →Sizing → Turks head → Flying saw cutting →End facing & Chamfering(Option) → Pipe collecting.
PRODUCT RANGE:
| Material to be processed | Carbon Steel, strip coils of weld able grade with max. 0.2% carbon |
| Type | Round, Square & Rectangular pipe |
| Pipe O. Diameter | |
| Round | 89.1mm – 219.1 mm |
| Square | 70 x 70 – 170 x 170 |
| Rectangular | 50 x 90 – 140 x 200 |
| Wall thickness | 2.0 mm – 8.0 mm |
| Pipe length | 6.0 m – 12.0 m |
| Line Speed | Max. 60 m/min |
| Welding Method | Solid State High Frequency Welding 600kW |
| Forming Method | Bottom line of tube constant for all sizes |
